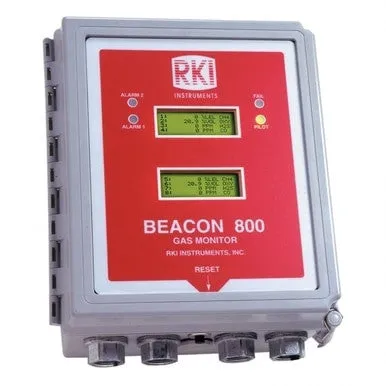

The Beacon 800 from RKI Instruments is a flexible control system for up to eight points of gas detection. The Beacon 800 can be powered by either 24 VDC or 85-264 VAC and accepts up to eight separate 4-20 mA sensor transmitters. The transmitters can be either two or three wire. The Beacon 800 control unit displays all sensor information simultaneously on the easy-to-read backlit screens. The housing itself is NEMA 4X rated for either indoor or outdoor use and comes with a wall mount installation kit.
Applications: Petrochemical plants, Refineries, Water & wastewater treatment pants, Pulp & paper mills, Gas, telephone, & electric utilities, Parking garages, Manufacturing facilities, Steel, Automotive, HVAC
Key Features:
- Up to 8 separate channels
- Displays all 8 channels simultaneously
- Compact, weatherproof, NEMA 4X enclosure
- 85 to 264 VAC or 24 VDC operation
- Long life sensors (2 years typical)
- Accepts any 4-20 mA transmitter
- Audible alarm with reset button
- Two programmable alarm levels per channel
- Common alarm and fail relays
- Relay rating 3 amps, form C
- Microprocessor controlled
ORDERING INFORMATION: When ordering a Beacon 800 system please specify the following components:
- Controller
- Detector Assembly (up to 8):
- Any options desired (These items are factory installed and must be ordered with the instrument):
- 75-0004RK Recorder output board, 8 outputs, 4-20 mA or 1-5 VDC
- 75-0005RK Heavy duty relay board, 4 relays at 30 amps
- 75-0006RK Relay board and recorder output board
- Battery back-up assembly if required
